ZW80Z series

DC vuccum pump

MAX FREE FLOW

35L/min @ OKpa

MAX VOCUUM

≤-90kPa

POWER INPUT OPTION

DC12V

ACCESSORIES

Inlet and exshaut joint、terminals、muffler、safety valve、endcaps


Product specification

The following data are the international standard data of Foshan Guangshun Electrical Appliance Co., Ltd. If in doubt or product parameter error,Please contact us.

Performance data
Base modelZW80Z12-25/-0.9
Rated voltage VDC 12V
Current @ rated pressureA5 A
Max vacuum≤-90kPa
Rated flow L/min≥25L/min@ 0kPa(2000r/min)
Speed scale r/min1000-2000
Ambient  ℃5~40 ℃
Insolution classB
Motor typeBLDC
Net weight kg0.7 kg
Restart pressure kPa0 kPa


Please contact us for more model specification;Parameters could be design to meet your needs.

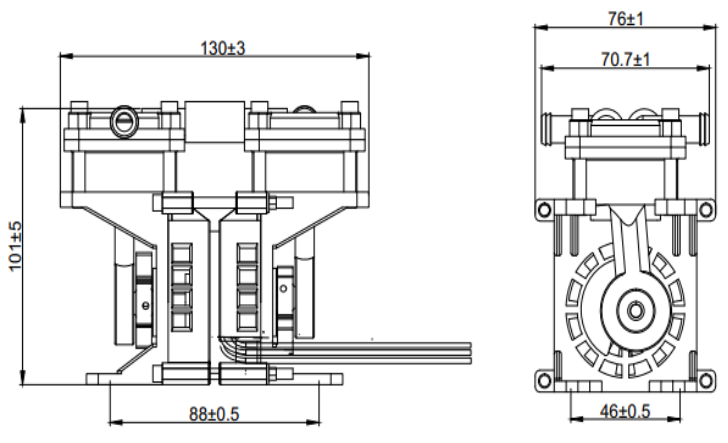

Technical drawings
