ZW100Z serires

MAX FREE FLOW

55/min @ OKpa

MAX VOCUUM

Applicable,please consult us

POWER INPUT OPTION

DC12V/DC24V

ACCESSORIES

Inlet and exhaust joint、terminals、muffler、safety valve、endcaps



Product specification

The following data are the international standard data of Foshan Guangshun Electrical Appliance Co., Ltd. If in doubt or product parameter error,Please contact us.

Performance data
Base modelZW100Z12-30/1.4
Rated voltage VDC 12V
Current @ rated pressureA10A
Rated pressure  kPa140kPa
Rated flow L/min25L/min @140kPa
Ambient  ℃5~40 ℃
Insolution classB
Motor typeBLDC
Net weight kg3.3kg
Restart pressure kPa0 kPa


Please contact us for more model specification;Parameters could be design to meet your needs.

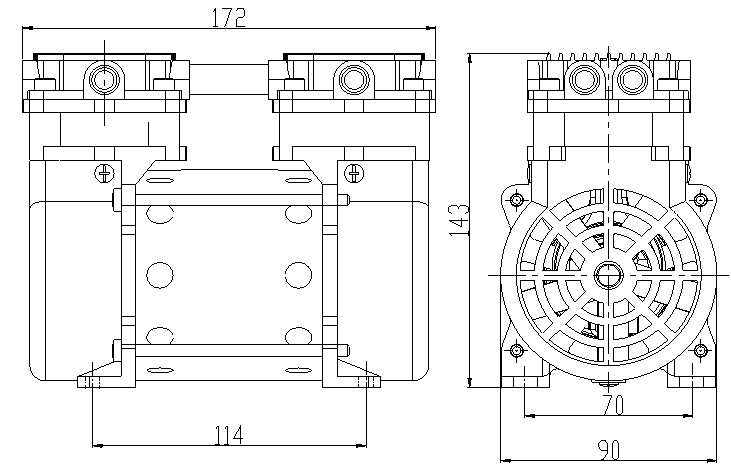

Technical drawings
