ZW300Z series

MAX FREE FLOW

120/min @ OKpa

MAX VOCUUM

Applicable,please consult us

POWER INPUT OPTION

DC 24V~310V

ACCESSORIES

Inlet and exhaust joint、terminals、muffler、safety valve、endcaps


Product specification

The following data are the international standard data of Foshan Guangshun Electrical Appliance Co., Ltd. If in doubt or product parameter error,Please contact us.

Performance data
Base modelZW300Z24-75/1.4
Rated voltage VDC 24V
Power≤350W @140KPa/DC 24V
Rated pressure  kPa140kPa
Rated flow L/min≥75L/min
Speed  r/min1700r/min
Ambient  ℃5~40 ℃
Insolution classB
Net weight kg<6.0Kg
Restart pressure kPa0 kPa


Please contact us for more model specification;Parameters could be design to meet your needs.

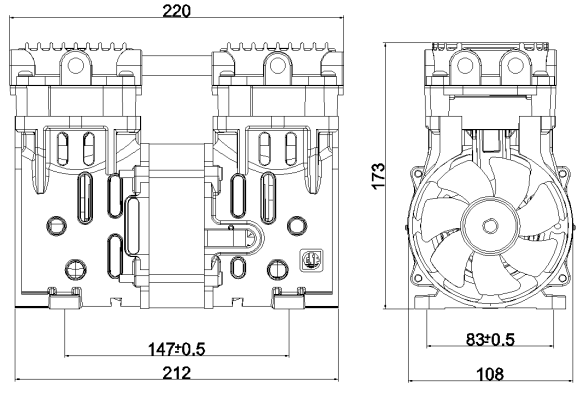

Technical drawings
