ZWS100 series

MAX FREE FLOW

12L/min @ OKpa

MAX VACUUM

Applicable,please consult us

POWER INPUT OPTION

AC 110V~120V、220V~240V  (50Hz/60Hz)

ACCESSORIES

Inlet and exhaust joint、terminals、safety valve、endcaps


Product specification

The following data are the international standard data of Foshan Guangshun Electrical Appliance Co., Ltd. If in doubt or product parameter error,Please contact us.

Performance data
Base modelZWS100F-7.4/1.1
Rated voltage VAC 230V/50HZ
Power≤80W
Rated pressure110kPa
Rated flow L/min7.4L/min @110kPa
Ambient  ℃5~40 ℃
Insolution classB
Thermal switchNon-reset 150±5℃
Net weight kg1.5kg
Restart pressure kPa0 kPa


Please contact us for more model specification;Parameters could be design to meet your needs.

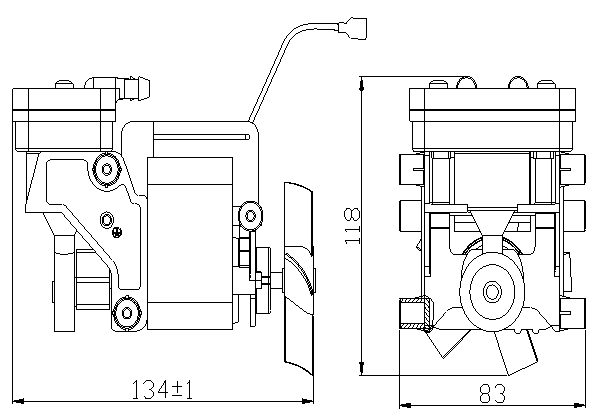

Technical drawings
