    ZW50 series

    MAX FREE FLOW

    20L/min @ OKpa

    MAX VACUUM

    Applicable,please consult us

    POWER INPUT OPTION

    AC 110V~120V、220V~240V  (50Hz/60Hz)

    ACCESSORIES

    Inlet and exhaust joint、terminals、muffler、safety valve、endcaps


    Product specification

    The following data are the international standard data of Foshan Guangshun Electrical Appliance Co., Ltd. If in doubt or product parameter error,Please contact us.

    Performance data
    Base modelZW50A-15/1
    Rated voltage VAC 220V/50HZ
    Power≤80W
    Rated pressure110kPa
    Rated flow L/min15L/min @100kPa
    Ambient  ℃5~40 ℃
    Insolution classB
    Thermal switchAuto reset 135±5℃
    Net weight kg2.1 kg
    Restart pressure kPa0 kPa


    Please contact us for more model specification;Parameters could be design to meet your needs.

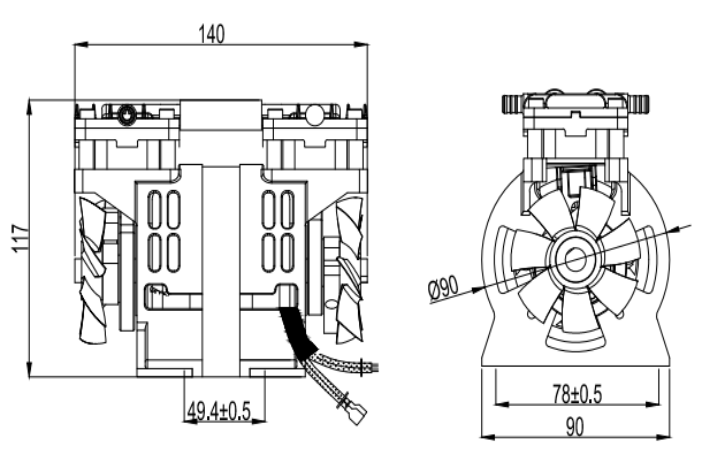

    Technical drawings
