ZW400 (A)series

MAX FREE FLOW

120L/min @ OKpa

MAX VACUUM

Applicable,please consult us

POWER INPUT OPTION

AC 110V~120V、220V~240V  (50Hz/60Hz)

ACCESSORIES

Inlet and exhaust joint、terminals、safety valve、endcaps、muffler


Product specification

The following data are the international standard data of Foshan Guangshun Electrical Appliance Co., Ltd. If in doubt or product parameter error,Please contact us.

Performance data
Base modelZW400A-90/2
Rate voltage VAC 220V/50HZ
Power≤500W
Rated pressure200 kPa
Rate flow L/min90L/min
Ambient  ℃5~40 ℃
Insolution classB
Thermal switchAuto reset 145±5℃
Net weight kg8.3kg
Restart pressure kPa0 kPa


Please contact us for more model specification;Parameters could be design to meet your needs.

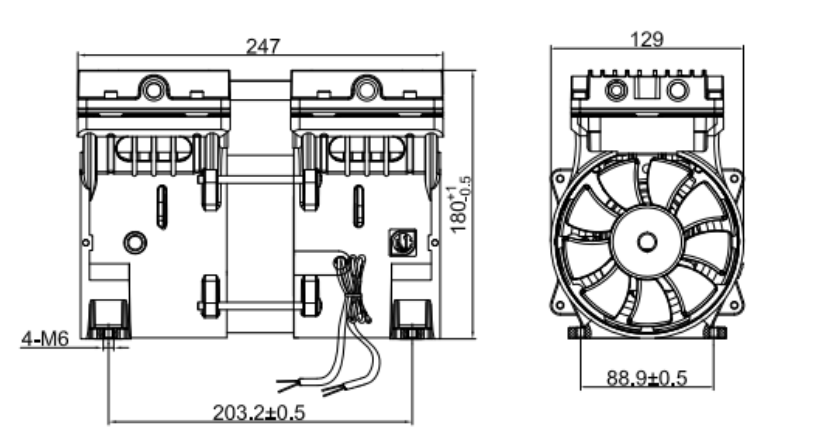

Technical drawings
